ECE 2300 Applied Circuits - Boost Converter PCB Project (KiCad + Multisim)

2025-04-30 · School · Audience: Course instructor · Effort: High · 20 hrs

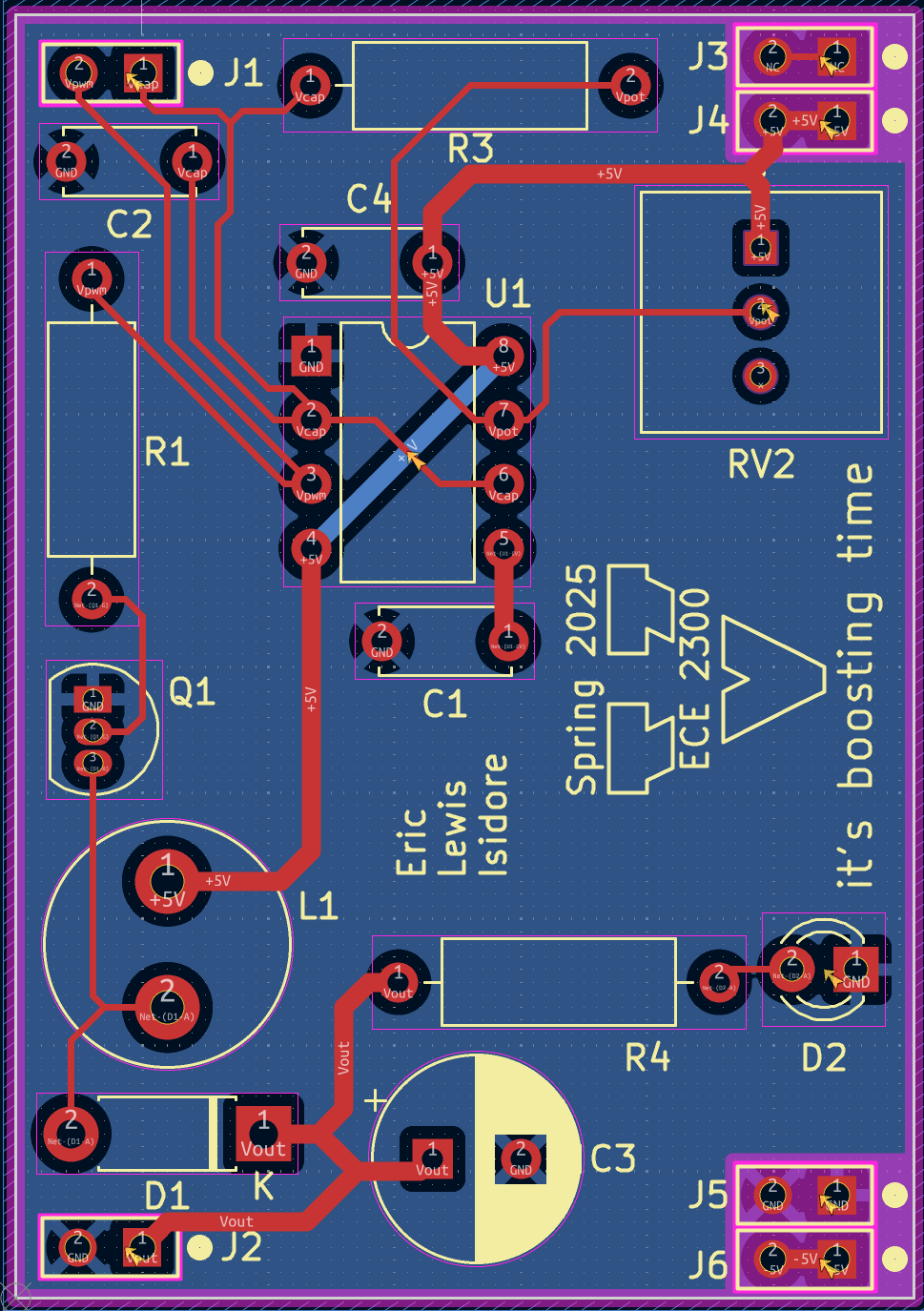

Designed and laid out a boost-converter PCB in KiCad, validated in Multisim.

pcbkicadpower-electronics
BoostConverterWaveForm
BoostConverterWaveForm
Copy of Screenshot 2025 03 26 210549
Copy of Screenshot 2025 03 26 210549
Screenshot 2025 03 26 210549
Screenshot 2025 03 26 210549
Open PDF ↗
Practical Waveforms 25S
